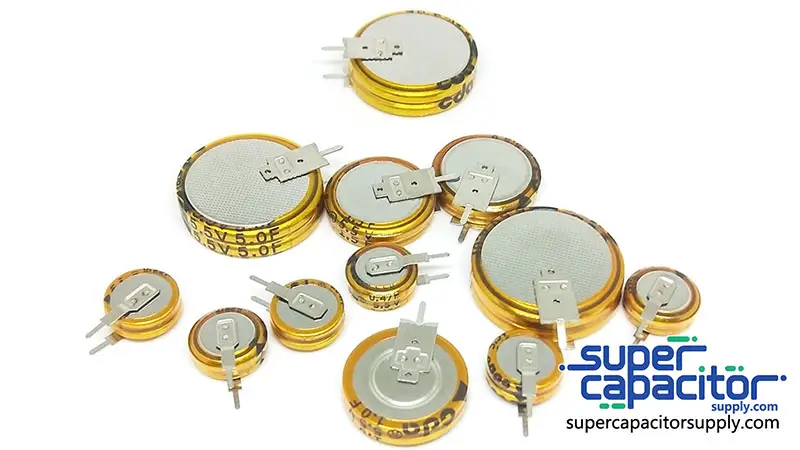

CDA-5.5V4.5F | High-Capacity Coin Type Supercapacitor
Supercapacitor
5.5V
CDA Series
4.5F
High Capacity
Industrial Backup
Technical Specifications#
| Parameter | Specification |
|---|---|
| Rated Voltage | 5.5V DC |
| Capacitance | 4.5F |
| ESR (Internal Resistance) | 10Ω |
| Maximum Current | 55mA |
| Operating Temperature | -40°C to +70°C |
| Endurance (Cycle Life) | 500,000 Cycles |
| Dimensions (D x H) | Φ24.5mm x 4.5mm |
| Electrolyte Type | Organic Electrolyte |
Key Features#
- Maximum Energy Density: Boasting a massive 4.5F capacitance, this model provides the highest energy density in the CDA series.
- High Efficiency: Maintains a low ESR of 10Ω, ensuring stable power delivery even under high-load conditions.
- Durable Construction: Designed for long-term reliability with a wide temperature range and 500,000 cycle rating.
